Somewhat timely, given the nature of some reader debates concerning the chain-driven Kawasaki Ninja 1000SX we recently completed reviewing, BMW has announced a chain it claims is ideal for touring. The M Endurance chain has a highly effective coating for the rollers and, in addition to requiring no periodic lubrication, the chain never stretches!

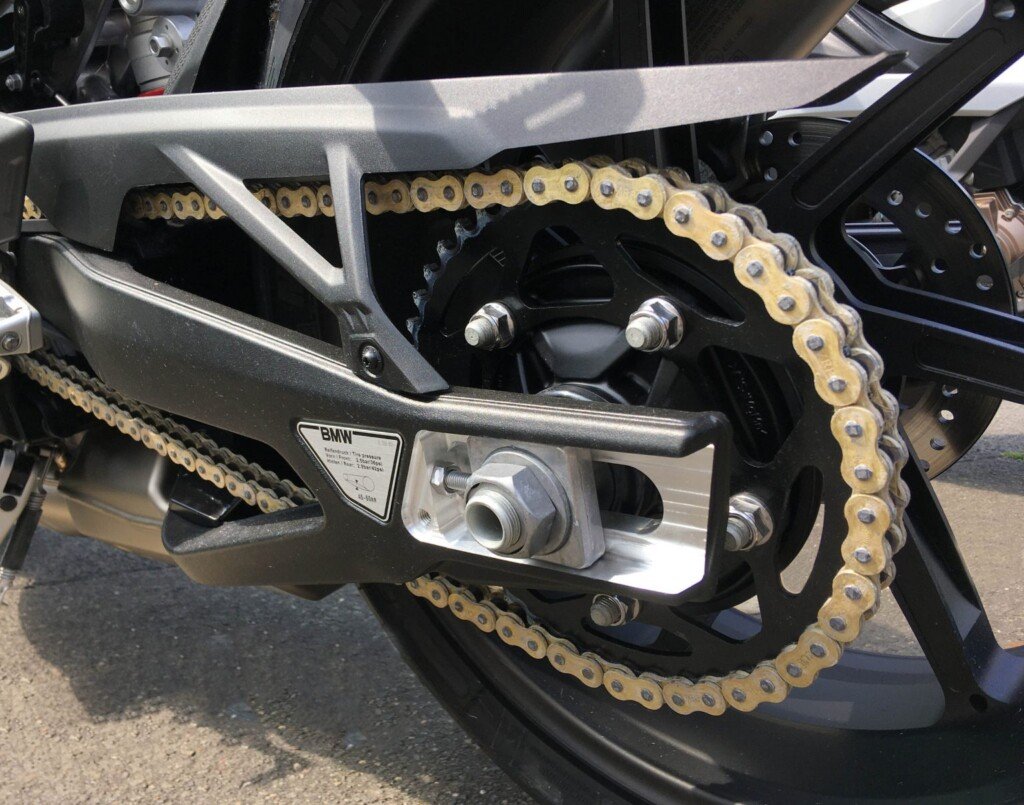

Currently available on just two BMW models (specified in the press release below), the chain is manufactured by Regina so there is hope that the technology may eventually be offered to owners of other chain-driven motorcycles. Here is the press release from BMW, together with an illustration:
Munich. For more than 90 years, the maintenance-free, environmentally friendly and comfortable shaft drive has been one of BMW Motorrad’s immovable technical cornerstones. With the M Endurance chain, BMW Motorrad now offers a maintenance-free chain with comparable characteristics for the first time.
Like previous X-ring chains, the M Endurance chain has a resident permanent lubricant filling between the rollers and pins, enclosed by X-rings. What is completely new, however, is that the previously necessary additional lubricant addition for the rollers and thus the familiar “chain lubrication” is no longer necessary, nor is any re-tensioning required from time to time due to the usual wear.
This enormous gain in comfort was made possible by using a new coating material for the rollers: tetrahedrally amorphous carbon (ta-C), also known as industrial diamond. This coating is characterized by extreme hardness and resistance and in this respect it is placed between the well-known DLC coating (Diamond Like Carbon) and pure diamond. In contrast to the metal surfaces used so far, the coating with the ta-C industrial diamond does not wear off. At the same time, this type of coating also offers a drastically reduced friction coefficient.
Thanks to excellent dry lubrication properties and the elimination of wear, the tetrahedral amorphous carbon coated rollers of the M Endurance chain offer maintenance comfort equivalent to that of a shaft drive motorcycle. This includes all the cleaning work that is unavoidable with a conventional chain due to splashed lubricant. Accordingly, the M Endurance chain also offers maximum environmental friendliness.
The M Endurance chain in 525 pitch is now available initially for the two 4-cylinder models BMW S 1000 RR and S 1000 XR. The M Endurance chain is available as accessory or directly from the factory as an option. Further BMW Motorrad models are being prepared for this feature.
